plt.show()Table of Contents
Objective
- Start with 2 independent vectors a and b
- find orthonormal vectors q1 and q2 that span the same plane
- find orthogonal vectors first A, B
Introduction
In linear algebra and data science, having a set of orthonormal vectors is incredibly useful. They form a basis that simplifies calculations and is the backbone of powerful techniques like Principal Component Analysis (PCA) and QR decomposition. But what if the starting vectors aren’t orthonormal? That’s where the Gram-Schmidt algorithm comes in.
Orthogonal Vectors: if their dot product is 0
Orthonormal Vectors: if their dot product is 0 and their lengths are 1
import numpy as npLet’s start with two vectors, a and b. Our goal is to find two new vectors, q1 and q2, that are orthonormal but span the exact same plane as a and b.
a = np.array([1,1,1])
b = np.array([1,0,2])
print(a.shape, b.shape)
initial_vectors = {'a': a, 'b': b}
plot_vectors_3d(initial_vectors, title="Initial Vectors a and b")(3,) (3,)
Obtaining Orthogonal Vectors
We’ll pick our first vector, a, and call it A. This is our first basis vector. Now, for the second vector b, we need to make it orthogonal to A. We do this by calculating the ‘shadow’ that b casts on A (its projection) and subtracting it from b. What’s left is a new vector, B, that is perfectly perpendicular (orthogonal) to A.
Mathematically, \[ A=a \\ \\ B = b- \frac{A^Tb}{A^TA}A \]
Implementing the above equations in code.
def getB(A, b):
num = np.dot(A.T, b)
den = np.dot(A.T, A)
frac = num/den
B = b - np.dot(frac, A)
return BA = a
B = getB(A, b)
print(f'A:\n{A},\nB:\n{B}')
orthogonal_vectors = {'A': A, 'B': B}

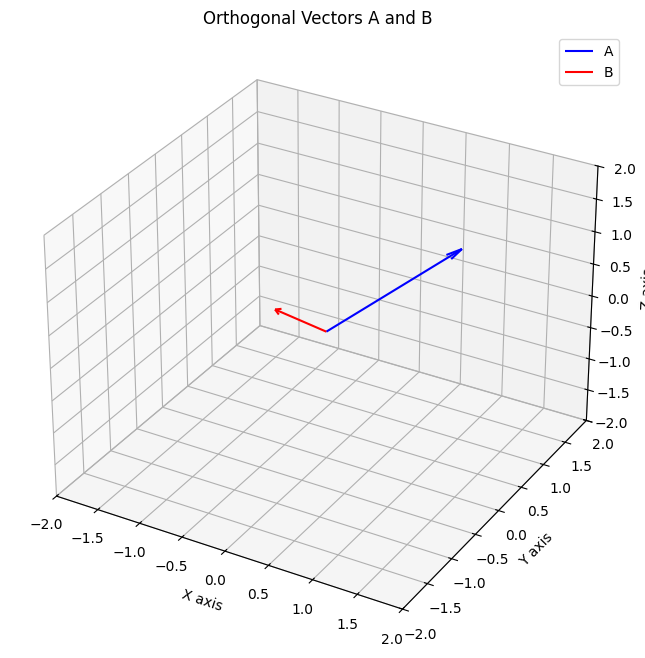

plot_vectors_3d(orthogonal_vectors, title="Orthogonal Vectors A and B")A:
[1 1 1],
B:
[ 0. -1. 1.]
dot_product = np.dot(A, B)
print(f'Dot product is {dot_product}!')
# length of vector
len_A = np.linalg.norm(A, ord=2)
len_B = np.linalg.norm(B, ord=2)
print(f'Length of A is {len_A}\nLength of B is {len_B}')Dot product is 0.0!
Length of A is 1.7320508075688772
Length of B is 1.4142135623730951The dot product is 0.0, which confirms A and B are orthogonal! However, we can see their lengths are not 1. This means they are an orthogonal basis, but not yet an orthonormal one.
A/np.linalg.norm(A, ord=2), np.linalg.norm(A/np.linalg.norm(A, ord=2), ord=2)(array([0.57735027, 0.57735027, 0.57735027]), 1.0)Normalization
To make our vectors have a length of 1, we simply divide each vector by its own magnitude (its L2 norm). It is called normalization.
\[ Q1 = \frac{A}{||A||} \\ Q2 = \frac{B}{||B||} \]
# getting orthonormal vectors
def getQ(A, B):
return A/np.linalg.norm(A, ord=2), B/np.linalg.norm(B, ord=2)Q1, Q2 = getQ(A, B)
print(f'Q1:\n{Q1},\nQ2:\n{Q2}')
orthonormal_vectors = {'Q1': Q1, 'Q2': Q2}

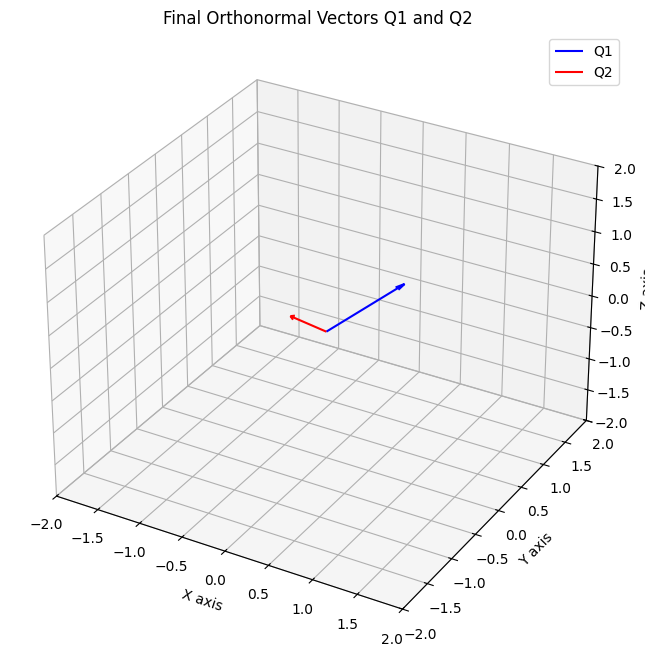

plot_vectors_3d(orthonormal_vectors, title="Final Orthonormal Vectors Q1 and Q2")Q1:
[0.57735027 0.57735027 0.57735027],
Q2:
[ 0. -0.70710678 0.70710678]
dot_product = np.round(np.dot(Q1, Q2), decimals=3)
print(f'Dot product is {dot_product}!')
# length of vector
len_Q1 = np.round(np.linalg.norm(Q1, ord=2), decimals=3)
len_Q2 = np.round(np.linalg.norm(Q2, ord=2), decimals=3)
print(f'Length of Q1 is {len_Q1}\nLength of Q2 is {len_Q2}')Dot product is 0.0!
Length of Q1 is 1.0
Length of Q2 is 1.0There we go! The dot product of Q1 and Q2 is 0, and their lengths are both 1. We have successfully converted our initial vectors into an orthonormal basis.
