Demystifying AdaBoost

Building the AdaBoost Algorithm from Scratch in Python
boosting
machine-learning
ada-boosting
sklearn
Published

September 19, 2024

Table of Contents

  1. Introduction
  2. AdaBoost Algorithm
  3. AdaBoost Implementation
  4. Conclusion
  5. References

Introduction

Ensemble Methods

An ensemble method constructs set of classifiers, and then classifies new data points by taking weighted vote of their predictions. It combine decisions from multiple models to improve performance, rather than a single model.

There are basically 2 Methods of implementing ensemble methods that are popular in machine learning. - Random Forests - Gradient Boosted Trees

Boosting:

  • This is the type of algorithm where weak learners added sequentially

  • Here, weak learners are trained on previous weak models.

  • Final model is obtained by additive modeling of the weak learner models.

    \[ F(x) = \sum_{t=1}^{M} \alpha_t h_t(x) \]

In this blog, we’ll pull back the curtain on Adaptive Boosting (AdaBoost) by implementing it from scratch.

import sklearn
from sklearn.datasets import make_classification, make_moons
from sklearn.model_selection import train_test_split
import numpy as np
from sklearn.tree import DecisionTreeClassifier
from sklearn.metrics import accuracy_score
import matplotlib.pyplot as plt

We generate random moon data, with 10000 number of samples.

# generating random data
dataset = make_moons(n_samples=10000,
                     shuffle=True,
                     #   n_classes=3,
                     random_state=82,
                     noise=0.3
                     )
print(type(dataset))
<class 'tuple'>
dataset[0].shape, dataset[1][:5], type(dataset[1]), set(dataset[1])
((10000, 2), array([1, 1, 0, 0, 0]), numpy.ndarray, {np.int64(0), np.int64(1)})
X, y = dataset
X.shape, y.shape
((10000, 2), (10000,))

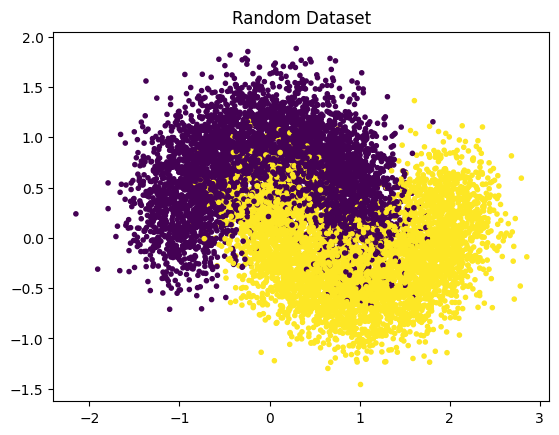

plt.title("Random Dataset")
plt.scatter(X[:, 0], X[:, 1], marker='.',c=y)
plt.show()

X_train, X_test, y_train, y_test = train_test_split(X, y, test_size=0.3, random_state=82)
print(f'X_train:{X_train.shape}, X_test:{X_test.shape}, y_train:{y_train.shape}, y_test:{y_test.shape}')
X_train:(7000, 2), X_test:(3000, 2), y_train:(7000,), y_test:(3000,)

AdaBoost Algorithm

The AdaBoost algorithm follows these key steps:

  1. Initialize Weights: Start by giving every data point an equal weight.

  2. Iterate: For a set number of iterations (estimators):

    • Train a Weak Learner: Train a simple model on the data, using the current weights. Points with higher weights will have more influence on the model’s training.
    • Calculate Weighted Error: Determine how many of the heavily-weighted points the model got wrong.
    • Calculate \(\alpha\): Assign a weight \((\alpha)\) to the trained model. Models with lower error get a higher alpha, meaning they have more say in the final prediction.
    • Update Weights: Increase the weights of the points the model misclassified. This is the ‘adaptive’ part; making the tough examples more important for the next iteration.
    • Normalize Weights: Ensure all weights sum to 1.

  3. Final Prediction: To classify a new point, get the prediction from all weak learners and combine them using a weighted vote, where the weights are the alpha values.

AdaBoost Implementation in Python

class AdaBoost:
    def __init__(self, n_estimators=10):
        self.n_estimators = n_estimators
        self.alphas = []
        self.models = []

    def fit(self, X, y):
        n_samples, n_features = X.shape

        # initial equal weights
        weights = np.ones(n_samples)/n_samples
        weights[np.isnan(weights)] = 0
        # weights = np.array([0.0000000001 if i==0  else i for i in weights])
        for i in range(self.n_estimators):
            model = DecisionTreeClassifier(max_depth=1)

            model.fit(X, y, sample_weight=weights)
            y_pred = model.predict(X)
            # print(y_pred,y)

            # calculate weighted error
            error = np.sum(weights*(y_pred!=y))/np.sum(weights)
            print(f"Error for {i} model is {error:.3f}")

            # added 1e-10 so as to not get NaN values in the weights
            alpha = 0.5*np.log((1-error)/(error + 1e-10))
            self.alphas.append(alpha)
            self.models.append(model)

            weights *= np.exp(-alpha*y*y_pred)
            weights /= np.sum(weights)

        print(f'\nAlphas modified into: {self.alphas}')

    # tally the weighted votes from all our trained models.
    def predict(self, X,  y):
        n_samples, _ = X.shape

        predictions = np.zeros(n_samples)
        for alpha, model in zip(self.alphas, self.models):
            print(f'Accuracy for single model: {accuracy_score(model.predict(X), y)}')
            predictions += alpha*model.predict(X)

        return np.sign(predictions)

Here, we initialize the model to the class we just created.

model = AdaBoost()
model
<__main__.AdaBoost at 0x72ed6c97f4d0>
model.fit(X_train, y_train)
Error for 0 model is 0.196
Error for 1 model is 0.219
Error for 2 model is 0.187
Error for 3 model is 0.252
Error for 4 model is 0.252
Error for 5 model is 0.252
Error for 6 model is 0.252
Error for 7 model is 0.252
Error for 8 model is 0.252
Error for 9 model is 0.252

Alphas modified into: [np.float64(0.7057423047191226), np.float64(0.6367577620190208), np.float64(0.7341725283661305), np.float64(0.542923918364508), np.float64(0.542923918364508), np.float64(0.542923918364508), np.float64(0.542923918364508), np.float64(0.542923918364508), np.float64(0.542923918364508), np.float64(0.542923918364508)]
accuracy_score(model.predict(X_test, y_test),  y_test)
Accuracy for single model: 0.8023333333333333
Accuracy for single model: 0.7896666666666666
Accuracy for single model: 0.6666666666666666
Accuracy for single model: 0.49433333333333335
Accuracy for single model: 0.49433333333333335
Accuracy for single model: 0.49433333333333335
Accuracy for single model: 0.49433333333333335
Accuracy for single model: 0.49433333333333335
Accuracy for single model: 0.49433333333333335
Accuracy for single model: 0.49433333333333335
0.8463333333333334

Conclusion

Here, we can see the individual accuracy of model are around 50 and just 3 models have 66, 78 and 80% accuracy. However, with AdaBoosting, the learned weights are assigned get the final accuracy of 84%.
